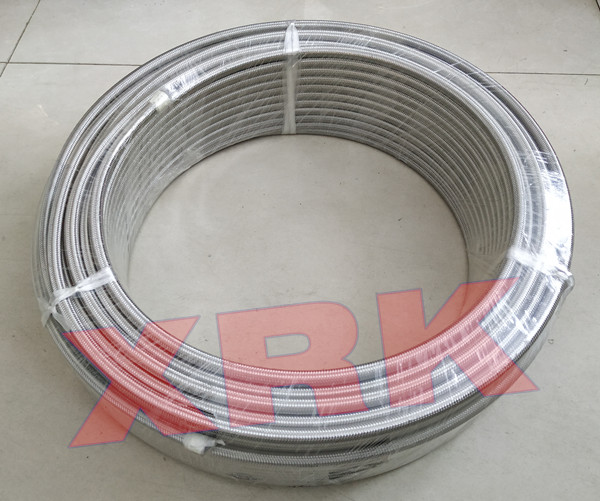

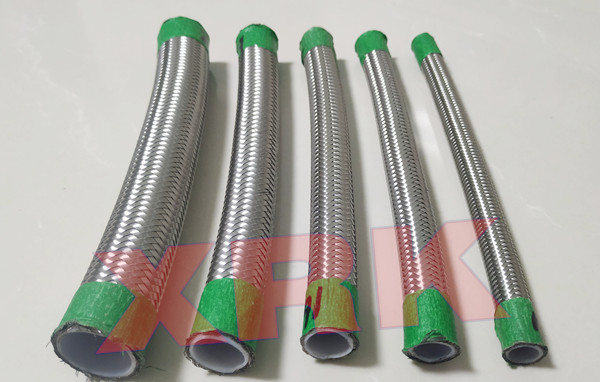

Smooth bore stainless steel braided ptfe hose
Smooth bore stainless steel braided ptfe hose comprises a straight PTFE hose liner and single or double layer stainless steel wire outer braided, and is the basic PTFE hose design being used successfully in many automotive, fluid handling, chemical transfer, paint, pharmaceutical, food and beverage processing, cosmetics and general-purpose applications. The hose core is made from virgin 100% PTFE resin without any pigment or additive. the wire braiding is produced from 304 or 201 stainless steel wire.
Smooth bore stainless steel braided ptfe hose features:
Low chemical activity, resistant to various chemicals, weather resistance, corrosion resistance, not easy to age, low surface friction coefficient, strong anti-adhesive, excellent electrical properties, and can add anti-static function. temperature resistance range -70°C~260°C. Maximum working pressure, burst pressure, as the working temperature rises, its efficiency decreases.
Smooth bore stainless steel braided ptfe hose specifications:
1. PTFE hose diameter: 3mm - 76mm
2. Hose type: smooth bore
3. Braided wire material: SS304 or SS201, cotton wire, etc
4. Operating temperature range: -70℃ -- 260℃
5. Maximum working pressure: 260Bar (depending on hose diameter)
6. Hose length: 6-100m per roll or as your request
This smooth bore stainless steel braided ptfe hose is widely used for a wide spectrum of applications including demanding compressed gas and industrial applications. The low-friction surface of smooth bore hose provides for high flow rates and these hoses are easily drained and/or cleaned. Our custom, precisely machined fittings will result in a truly reliable hose assembly for all of your demanding applications.
